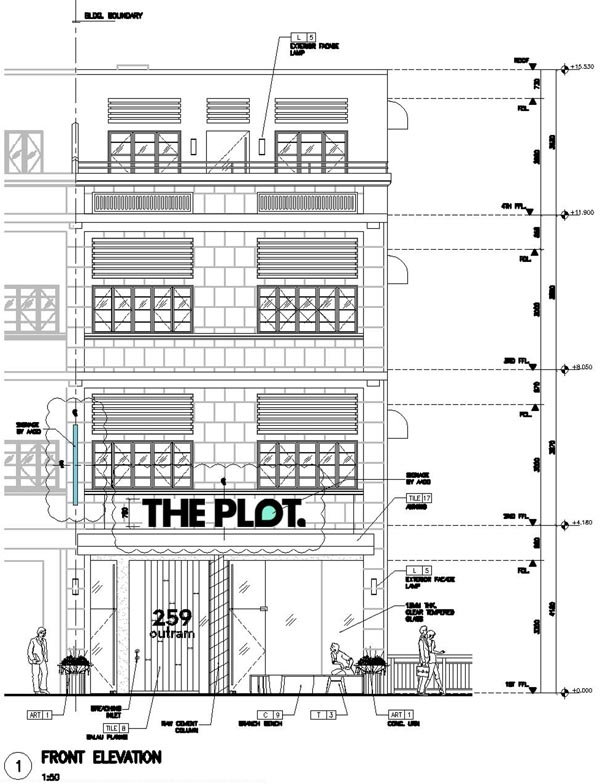

29.05.13 | 259 01.10 Front Elevation | R1

1. 4th level windows restored to steel + glass

2. Breaching inlet added to left of the sign board

3. Added signage proposal

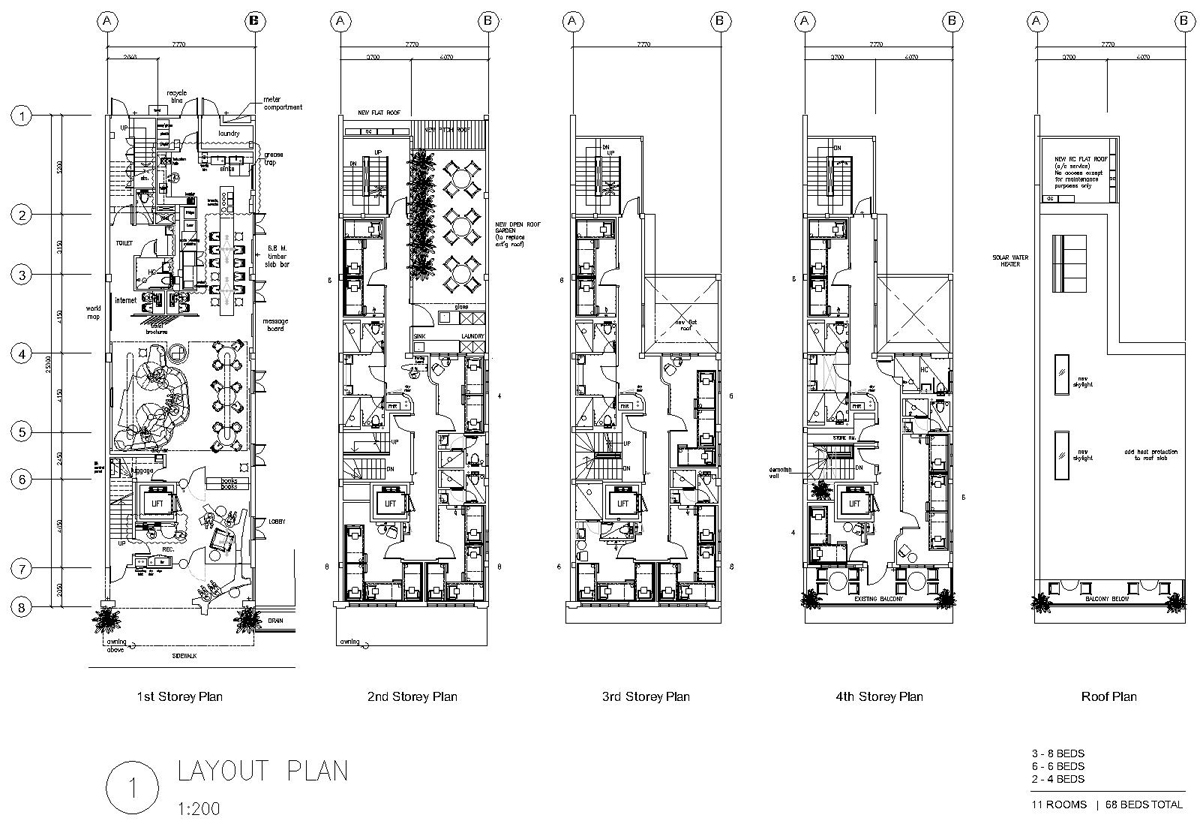

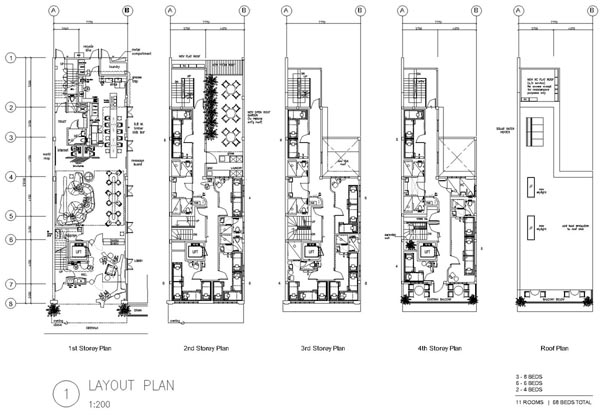

02.08.13 | 259 01.01 Layout Plan | R8

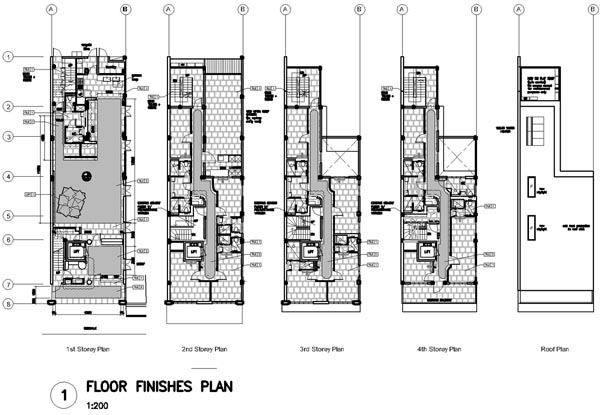

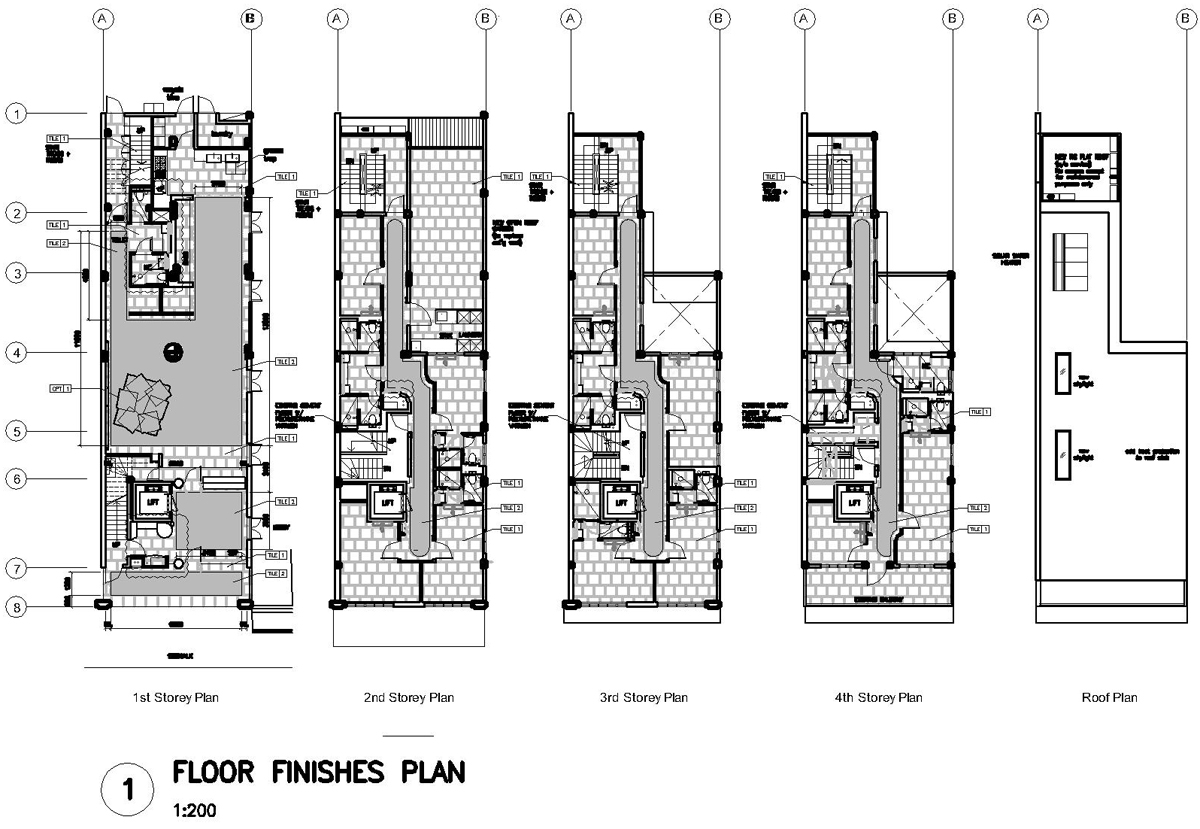

03.06.13 | 259 01.05 Floor Finishes Plan | R2

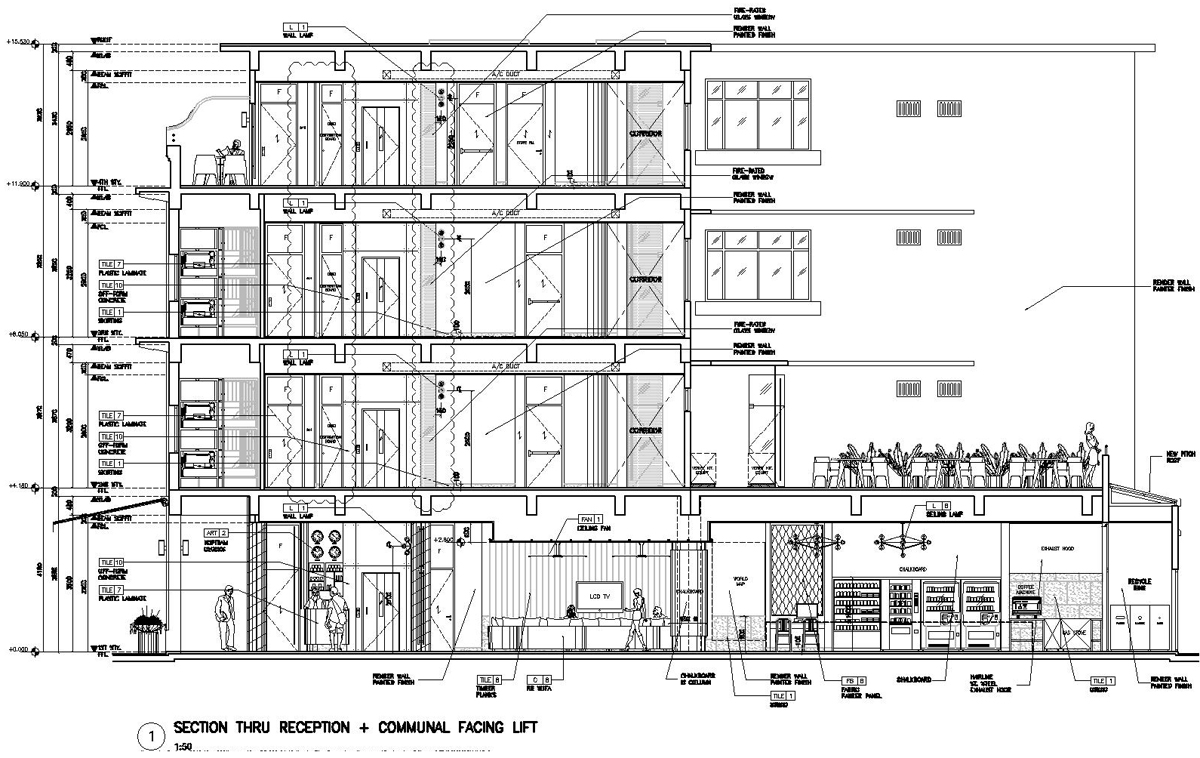

15.05.13 | 259 01.12 Section thru Reception + Communal facing Lift | R3

1. New false columns run through the building, next to the lift

Drawing   Title Format Format Issued
Cover Sheet  259 00.00 | R1 .pdf .zip [cad] 13.09.12
Drawing Schedule  259 00.01 | R1     listed here
FF+E Coding Schedule  259 00.02 | R1 .pdf .zip [cad] 03.09.12
General Notes  259 GN.01+02 | R1 .pdf .zip [cad] 25.06.12
   Layout Plan  259 01.01 | R8 .pdf .zip [cad] 02.08.13
Construction Plan  259 01.02 | R2 .pdf .zip [cad]  03.06.13
 Reflected Ceiling Plan  259 01.03 | R4 .pdf .zip [cad] 05.09.13
Tel + Elect Plan  259 01.04 | R3 .pdf .zip [cad] 11.07.13
Floor Finishes Plan  259 01.05 | R2 .pdf .zip [cad]  03.06.13
 Furniture Coding Plan  259 01.06 | R2 .pdf .zip [cad]  03.06.13
Elevations | Sections
Front Elevation   259 01.10 | R1 .pdf .zip [cad]  29.05.13
Side Elevation   259 01.11 | R2 .pdf .zip [cad]  29.05.13
Section Thru Rec + Comm facing lift   259 01.12 | R3 .pdf .zip [cad] 15.05.13
Section thru Lobby + Rooms  259 01.13 | R3 .pdf .zip [cad]  28.05.13
Sect thru Kitch + Lobby facing Windows  259 01.14 | R4 .pdf .zip [cad]  28.05.13
Five Foot Way Elevation  259 01.15 | R1 .pdf .zip [cad]  03.06.13
Lobby Entry Elevation  259 01.16 | R1 .pdf .zip [cad]  03.06.13
Construction A3 Details
Door Schedule  259 02.00A-H | R2 .pdf .zip [cad] 29.05.13
Door Details  259 02.01A-E | R3 .pdf .zip [cad]  09.06.13
 Custom Door Pull Detail  259 02.02A-B | R1 .pdf .zip [cad] 13.09.12
 [standard room] Toilet Type A Detail  259 02.03A-D | R1 .pdf .zip [cad]

 11.06.13
 [communal toilet ] Toilet Type B Detail  259 02.04A-D | R1 .pdf .zip [cad]  11.06.13
 [odd at lift] Toilet Type C Detail  259 02.05A-C | R2 .pdf .zip [cad]  11.06.13
 [Handicapped] Toilet Type D Detail  259 02.06A-C | R2 .pdf .zip [cad]  13.06.13
 [Community  Room] Toilet Type E Detail  259 02.07A-D | R3 .pdf .zip [cad]  31.05.13
 Timber Ceiling at Communal Rm Detail  259 03.01A-C | R2 .pdf .zip [cad] 27.05.13
Guest Room Ceiling Detail  259 03.02 | R1 .pdf .zip [cad]  28.05.13
Skylight Detail  259 03.03 | R1 .pdf .zip [cad]  29.05.13
CPT-1 Squares Carpet Detail  259 05.01 | R1 .pdf .zip [cad] 10.01.13
A3 FF+E  Details
 C-1 Gibson Stackable Chair Detail  259 06.01 | R1 .pdf .zip [cad] 26.06.12
 C-2 Native Barstool Detail  259 06.02 | R1 .pdf .zip [cad] 26.06.12
C-3 Native Cafe Chair Detail  259 06.03 | R1 .pdf .zip [cad] 26.06.12
C-4 Cloudscape Chair Detail  259 06.04 | R1 .pdf .zip [cad] 26.06.12
L-1 Potence 1947 Wall Lamp Detail  259 06.05 | R1 .pdf .zip [cad] 23.08.12
C-5 Melcor Galv Side Chair Detail  259 06.06 | R1 .pdf .zip [cad] 26.06.12
C-6 Melcor Galv Arm Chair Detail  259 06.07 | R1 .pdf .zip [cad] 27.06.12
C-7 Industrial Galv Stool Detail  259 06.08 | R1 .pdf .zip [cad] 27.06.12
C-8 RB Sectional Sofa Detail  259 06.09A-C | R1 .pdf .zip [cad]

25.06.12
T-1  Munggur Breakfast Table Detail  259 06.10A-C | R1 .pdf .zip [cad] 28.06.12
T-2  Cafeteria 1950 Cafe Table Detail  259 06.11 | R1 .pdf .zip [cad] 27.06.12
TILE-5 Newspaper Rack Detail  259 06.12A-B | R1 .pdf .zip [cad]

29.06.12
C-9 Branch Bench Detail  259 06.13A-C | R1 .pdf .zip [cad] 28.06.12
T-3 Cafeteria 1950 Side Table Detail  259 06.14 | R1 .pdf .zip [cad] 27.06.12
ART-1 Urn + Podium Detail  259 06.15 | R1 .pdf .zip [cad] 05.09.12
TILE-9 Reception Bookcase Detail  259 06.16A-C | R1 .pdf .zip [cad] 06.09.12
Reception Desk + Back Wall Detail  259 06.17A-D | R4 .pdf .zip [cad]   31.07.13
Message Boards Detail  259 06.18 | R1 .pdf .zip [cad] 07.09.12
TILE-16 Etched Mirror Detail  259 06.19 | R1 .pdf .zip [cad] 03.07.12
Slumber Pod Detail  259 06.20A-G | R5 .pdf .zip [cad]  29.05.13
Kitchen Utility Counters Detail  259 06.21A-E | R3 .pdf .zip [cad]   07.08.13
Internet Station Detail  259 06.22A-C | R2 .pdf .zip [cad] 03.05.13
Roof Garden Laundry Detail  259 06.23A-B | R1 .pdf .zip [cad] 14.09.12
TILE-15 SonoTube formed Column  Detail  259 06.24 | R1 .pdf .zip [cad] 25.04.13
Chalkboard Column  Detail  259 06.25 | R1 .pdf .zip [cad] 15.05.13
L-8 Modo Pendant Detail  259 06.26 | R1 .pdf .zip [cad]  17.06.13
Vending Machine + Cabinet Detail  259 06.27A-E | R2 .pdf .zip [cad] 02.08.13

 259 A4 FF+E Spec Sheets v.01  [wait for download - 30mb] .doc 99%  01.08.13
